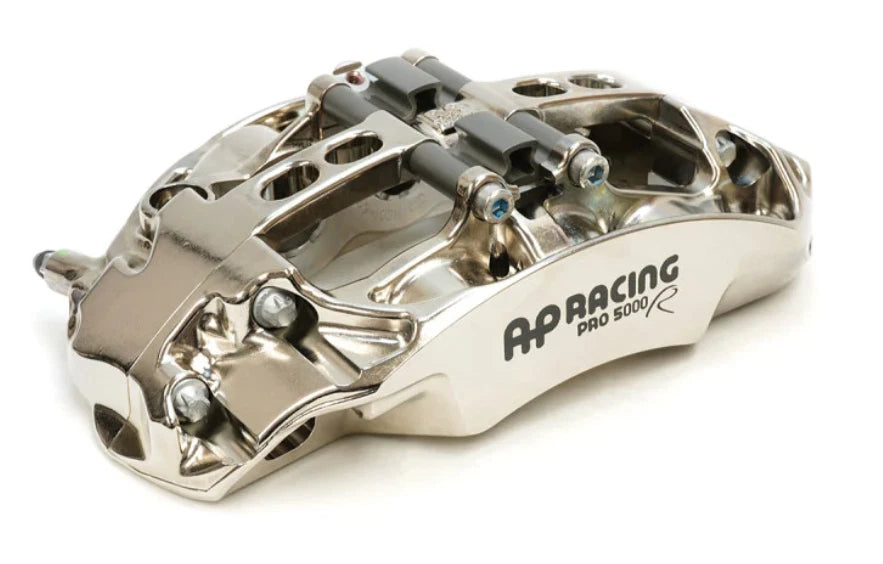

Genuine AP RACING

PRO 5000R high Performance calipers

Features

Pad size (25mm - Thicker for longevity and endurance racing)
Saves approximately 11kg of unsprung weight vs. the OEM front brake setup
Fits most popular 18" track wheels
Features AP Racing Radi-CAL Pro5000R six piston calipers
378x36 2 piece discs (F8X) or 368x36 for E9X
Every component designed to resist the heat of extended track sessions
Pistons sized properly to allow for seamless integration with OEM master cylinder and ABS system
Designed to work with OEM rear brakes or the matching AP Racing rear BBK
*Please note these are made to order and can have up to a 5 week lead time.

Part Numbers:

Anodised Surface Treatment

- RH = CP9668-2S7L
- LH = CP9668-3S7L

Nickel Plated Surface Treatment

- CP9668-2S7LN

- CP9668-3S7LN
 6 Piston
- 25mm Thick Pad
Typical Applications:
- Budget, general competition use.
- Single make race series.

Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.

- Available with either Anodised or Nickel plated surface treatments.
- Radial mount, 180.0mm x 42.0mm centres.
- Suits Ø390.0mm Max or 362.0mm Min x 36.0mm Max / 32.0mm Min thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- 7lb Anti-knockback springs fitted.
- Stainless Steel wear plates.

Part Numbers:
Anodised Surface Treatment

- RH = CP9668-2S7L
- LH = CP9668-3S7L

Nickel Plated Surface Treatment

- CP9668-2S7LN

- CP9668-3S7LN

Brake Pad Information
(To view an image of the pad
click on Pad Part No)
CP3558D54

- Pad Area = 77.4cm²
- Pad Depth = 54.0mm
- Thickness = 25.0mm

TECHNICAL SPECIFICATIONS
Piston Sizes - mm    - Ø27.0 x 2
- Ø31.8 x 2
- Ø38.1 x 2
Piston Area - cm²    50.1
Disc Diameter - mm    - Max = 390.0
- Min = 362.0
Disc Thickness - mm    - Max = 36.0
- Min = 32.0
Weight - No pads - Kg    3.1
Hydraulic Threads    M10x1.0
Mounting Type    Radial
Mounting Centres - mm    180.0
Mounting Offset - mm    42.0
Mounting Hole Ø - mm    12.27 - 12.17
PL Dimension - mm    63.5
Bleedscrew Tightening Torque - Nm    17
SPARE PARTS
Pistons    - Ø27.0 = CP9665-114
- Ø31.8 = CP9665-115
- Ø38.1 = CP9665-116
Seal Repair Kit    CP8518-CEJ
Ani-Knockback Spring Kit    CP6518-7LBSSL
Pad Retainer Kits    - Standard retainer - CP9665-12
- Quick Release - CP9665-13
Wear Plates    - RH = CP9668-106
- LH = CP9668-107
Bleedscrew Kit    CP3880-1
