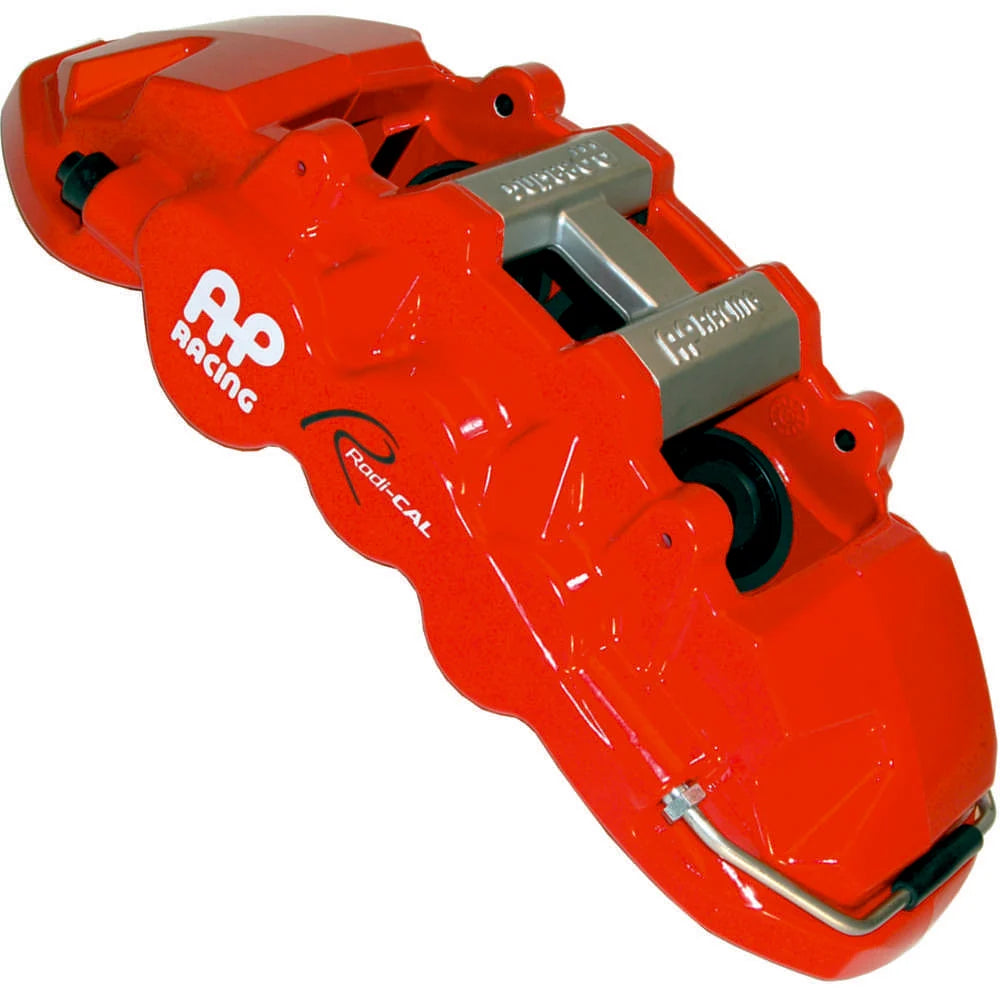

AP Racing Street Front or Rear PAIR Red 6 Piston Performance Brake Calipers World Radi-CAL 1 CP8520 62.5cm² Piston Area
Sale price
$2,995.00 AUD
Regular price
$3,550.00 AUD
Skip to product information
AP Racing Street Front or Rear PAIR Red 6 Piston Performance Brake Calipers World Radi-CAL 1 CP8520 62.5cm² Piston Area
AP-CP8520-6P
Sale price
$2,995.00 AUD
Regular price
$3,550.00 AUD
AP Racing Street Front or Rear PAIR Red 6 Piston Performance Brake Calipers World Radi-CAL 1 CP8520 62.5cm² Piston Area
Applications:
- Performance Road Front.
- Factory Radi-CAL™ Brake Kits.
Features:
- Benefits from a radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø410mm or 380mm x 36mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP8520-2S0BG
- LHT = CP8520-3S0BG.
- RHL = CP8520-4S0BG
- LHL = CP8520-5S0BG
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP8520-2S0R2
Specifications
| Brake Pad Information |
CP7555D70 |
| CALIPER TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | Ø31.8 / Ø36.0 / Ø41.3 |
| Piston Area - cm² | 62.5 |
| Disc Diameter - mm | - Max = Ø410.0 - Min = Ø380.0 |
| Disc Thickness - mm | 36.0 |
| Weight (No Pads) - Kg | 4.65 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 195.0 |
| Mounting Offset - mm | 49.50 |
| Mounting Hole Ø - mm | 12.10 |
| PL Dimension - mm | 70.0 |
| Bleed Screw Tightening Torque - Nm | 17 |
| CALIPER SPARES | |
| Pistons | - Ø31.8mm = CP8336-116 - Ø36.0mm = CP8520-107 - Ø41.3mm = CP8335-111 |
| Seal Repair Kit | CP4527-EHK |
| Pad Retainer Type / Part No. | Pin / CP7555-116 |
| H / Piece and Bolt | CP8520-106 & CP3596-112ST x 2 |
| Bleed Screws | CP3880-1 |
