POWER SPIRIT

UNIVERSAL

KT380   TURBOCHARGER
 turbocharger for turbo KKR380 A/R:.50 cold .86 t25/28 flange 3 Bolt water cooled turbocharger

 ultimate turbo for T2 TURBO - UNIVERSAL TYPE
This is our largest Kompact series turbocharger, which offers even more top-end power than the KKR330. It shares the same turbine and 0.86 A/R exhaust housing, but with a larger compressor and compressor cover. It offers good response on 2.0 litre to 2.4-litre four-cylinder engines. It is also good for twin-turbo applications on 3.0-6.0 litre engines.

Specifications
Compressor side
Inlet pipe 70mm, outlet pipe 50mm 48 trim compressor; inducer 53mm, exducer 76.5mm
Exhaust side
0.86 A/R turbine housing, turbine wheel outlet 46mm, outer diameter 53mm
UNIVERSAL FITS FOR
NISSAN TOYOTA MAZDA HONDA + MORE

Turbine Housing AR: A/R.86; Turbine Inlet :T25 Flange 40.5*73mm ; Turbine Outlet: 3 Bolt ; Comp. Housing AR: A/R.50; Compressor Inlet :70mm; Compressor Outlet :50mm; Turbine Wheel :*46.2-53mm Trim:76 ; Comp. Wheel: 53mm-76.5mm Trim:48 ; Bearing Housing TB28

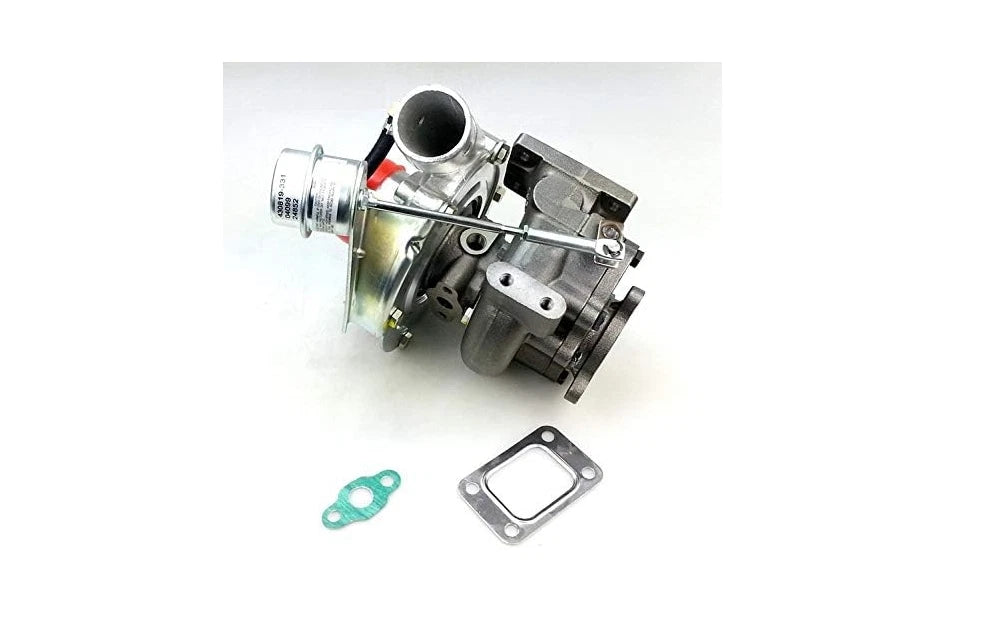

oil and water cooled :Water ; Thrust Bearing : 360; Wastegate :Internal; Item exactly the same as picture shown. Item Includes: 1 x turbo with gasket; Application : Nissan 2.0-2.5L SR20DET/CA18 T380 2.0-2.5L SR20DET/CA18  + MORE
Results
As a single turbo on a 2.0-litre Nissan SR20DET engine we have seen 223kW at the wheels with 16psi boost. In a twin-turbo application on a Toyota 2JZ-GTE it produced 408kW at the wheels on 22psi boost.
