600X300X76MM ALUMINIUM. INTERCOOLER

+ ALUMINIUM PIPING KIT + GT TURBO GT3582 - 500HP KIT

BRAND NEW PERFORMANCE UPGRADE KIT  BY PREMIUM AUTO STORE

POWER SPEC GT3582 Turbo upgrade & Intercooler & FULL Piping Kit

UNIVERSAL FOR ANY PERFORMANCE UPGRADES

WORK GREAT ON
suits Falcon BA/BF XR6 FPV
NISSAN SKYLINE R32 R33 R34 GTST GTT / SILVIA S13 S14 S15

SUITS 4WD 4X4 /TURBO DIESEL - LANDCRUISER HILUX NAVARA PATROL ++

This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

 Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.
600x300x76mm Intercooler fits Universal engine & vehicle.

Application
Perfect for all 4/6 cylinder and 3.0L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP
Cooling Type: Water + Oil

Specification
Turbo
Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet () Flange: 4 Bolt
Turbine Trim: 84
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Turbine A/R: 0.63
Compressor Trim: 57
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compressor A/R: 0.7
Bearing: Wet Float
Warranty: 2 Year
Internal Wastegate: No

Intercooler Turbo Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
-100% brand new  Never been tried or installed.
-100% quality assurance tested
-Made out of high quality of 6061 aluminum Manual polishing finished

Intercooler
Core Dimension: 600 X 300 X 76 MM

Inlet / outlet size:    3" inch

Thickness: 3" (76mm)

Core design:  Bar & Palte

Color: White

Intercoolers are designed with a Bar & Palte core which has the highest thermodynamic dissipative process.
These universal intercoolers come with a 3" inlet and outlet.

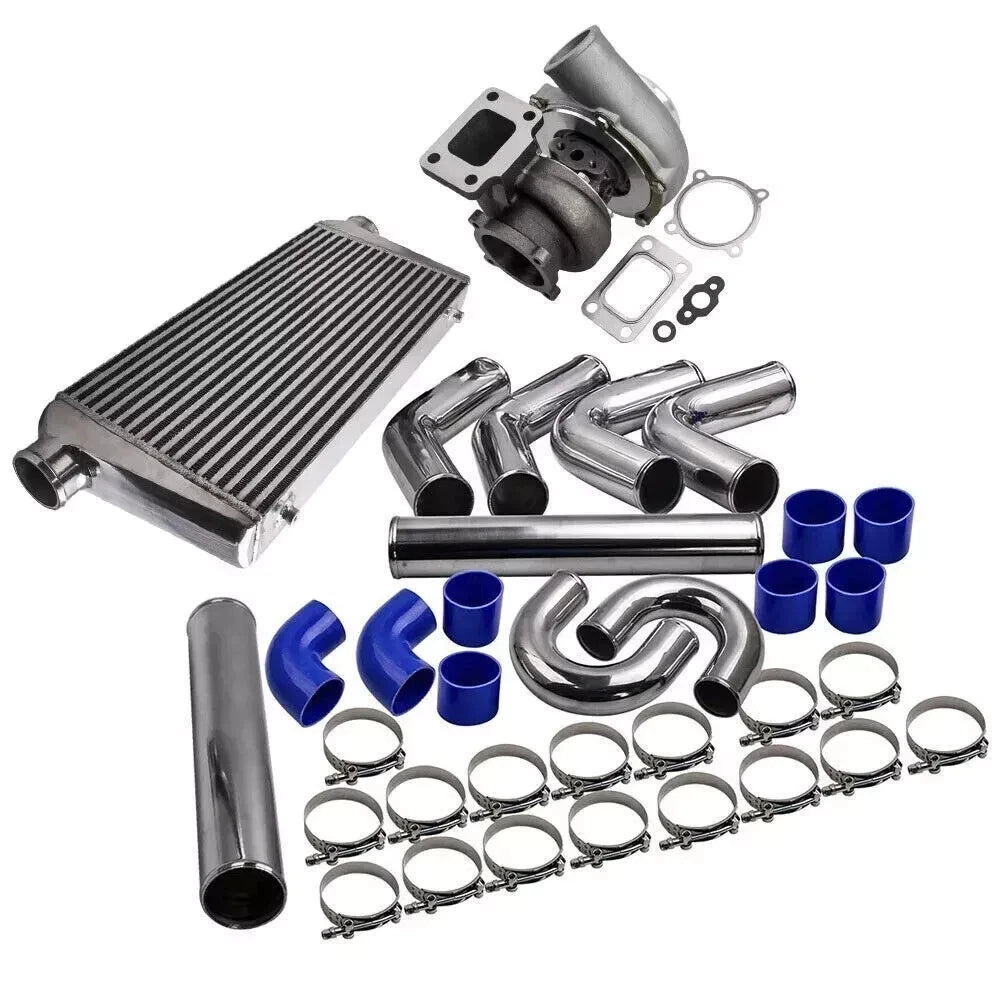

Package Including

1x Turbo and gaskets

1x 600x300x76mm Intercooler

2x 90 Degree Aluminum Pipe

2x Straight aluminum pipe

2x 45 Degree Aluminum Pipe

2x U Aluminum Pipe

8 x high tempature silicone hose: (6x straight, 2 x 90degree) Blue

16x T-bolt Clamps
